A Practical Connection for Compatible Trailers
Designed for trailers using a 50 mm tow ball connection, this metal trailer coupler combines a lever-operated mechanism with a compact silver-finish housing.
Its raised handle provides access to the coupling mechanism, while the built-in status markings offer a visible reference during connection and release.
Whether you're replacing an existing coupler or preparing a compatible trailer drawbar, this component provides a straightforward towing connection when properly selected, mounted, and operated.

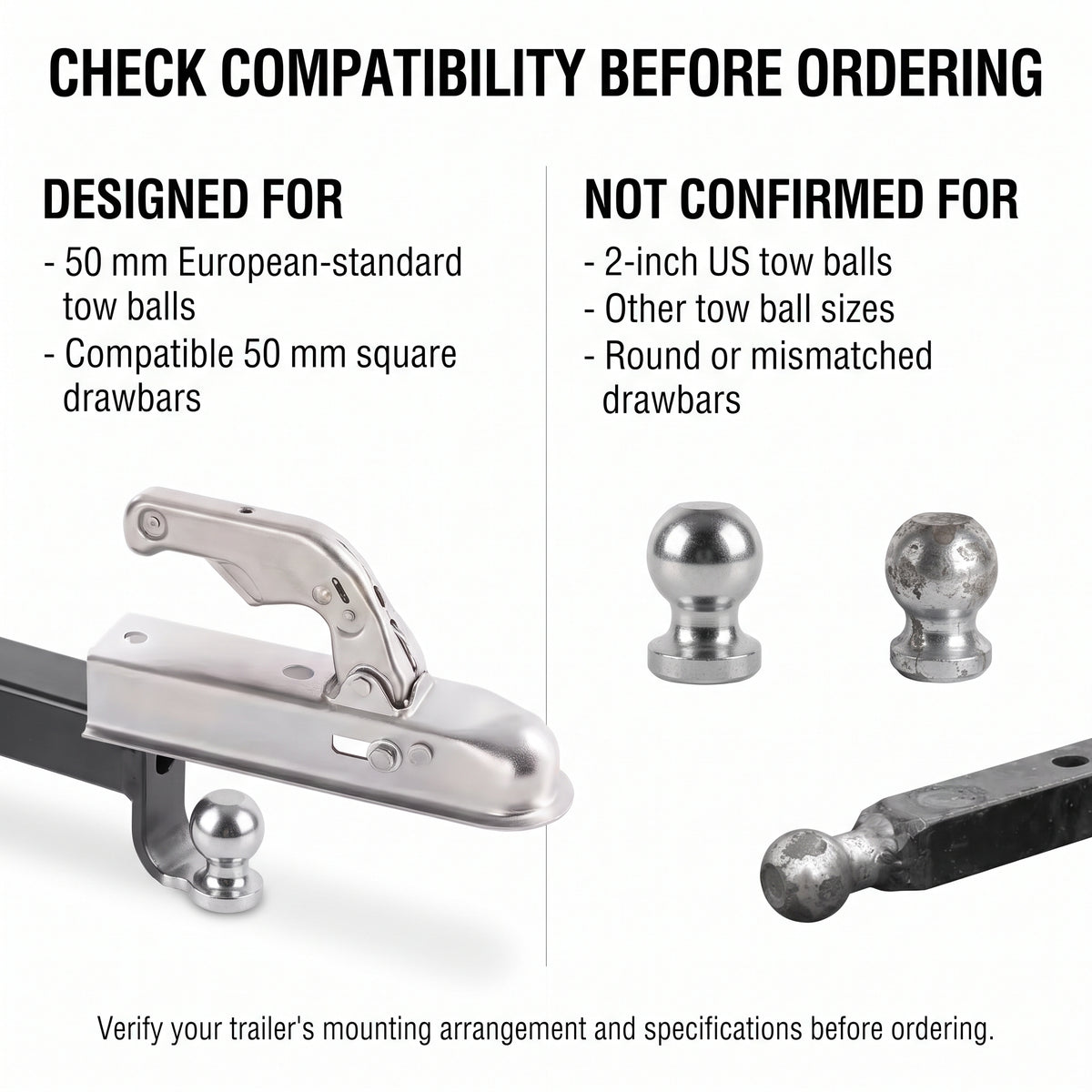

Check Your Tow Ball and Drawbar Before Ordering
This trailer coupler is designed for European-standard 50 mm tow balls and is described by the supplier as suitable for 50 mm square trailer drawbars.
Before ordering, verify that your trailer uses the correct tow ball diameter, square drawbar dimensions, and compatible mounting arrangement.
Designed For:
- 50 mm European-standard tow ball connections
- Compatible 50 mm square trailer drawbars
- Mounting configurations matching the coupler's physical construction
Not Confirmed Compatible With:
- Standard US 2-inch tow balls
- 1⅞-inch or 2 5/16-inch tow balls
- Round or differently sized trailer tongues
- Mounting systems with mismatched holes or clearance
- Trailers exceeding the coupler's substantiated towing rating

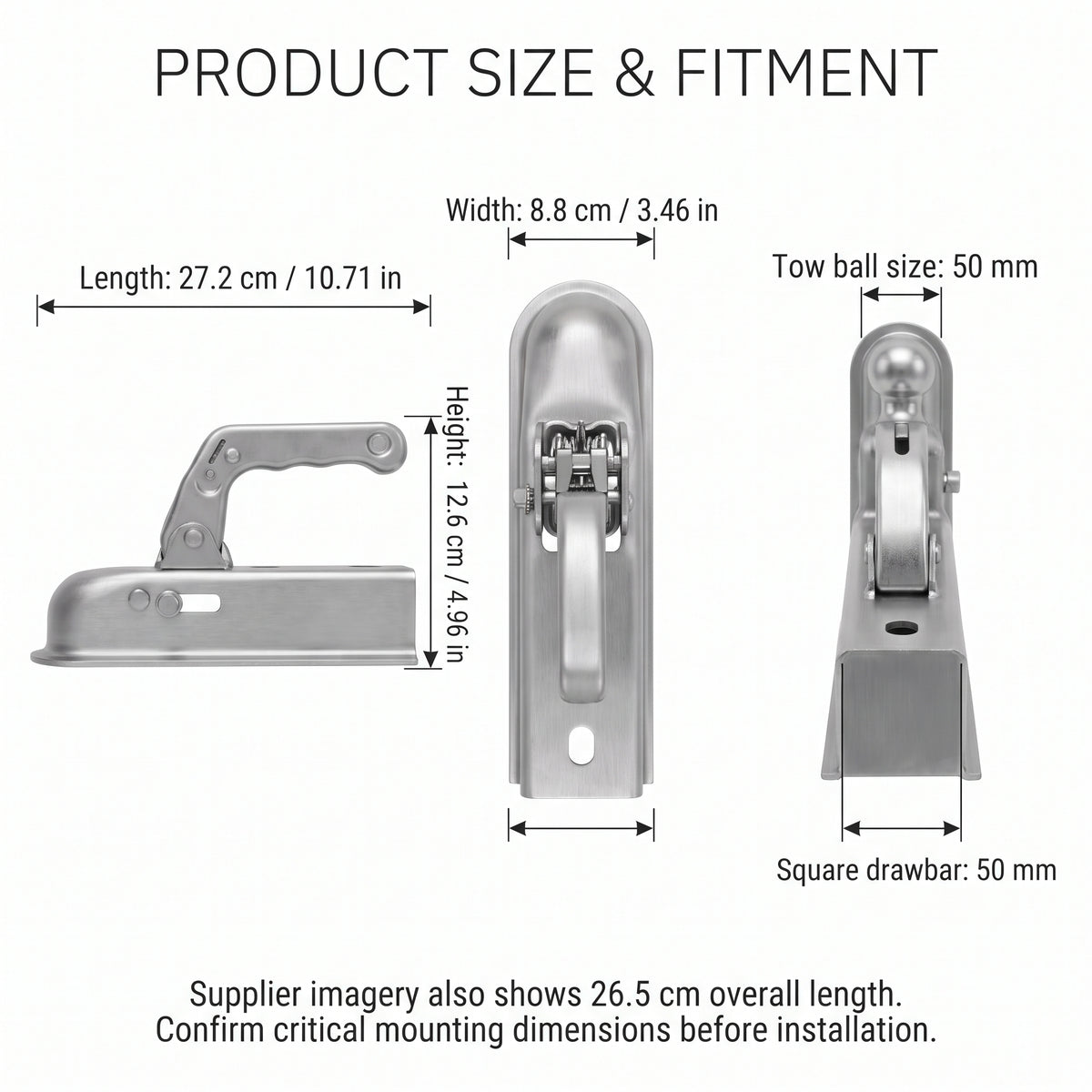

The product provides approximate overall measurements of 27.2 × 8.8 × 12.6 cm. A separate product graphic shows a 26.5 cm length, so buyers should confirm critical installation measurements rather than relying on overall length alone.
This component is not a complete tow hitch kit and does not include a vehicle-side tow ball.

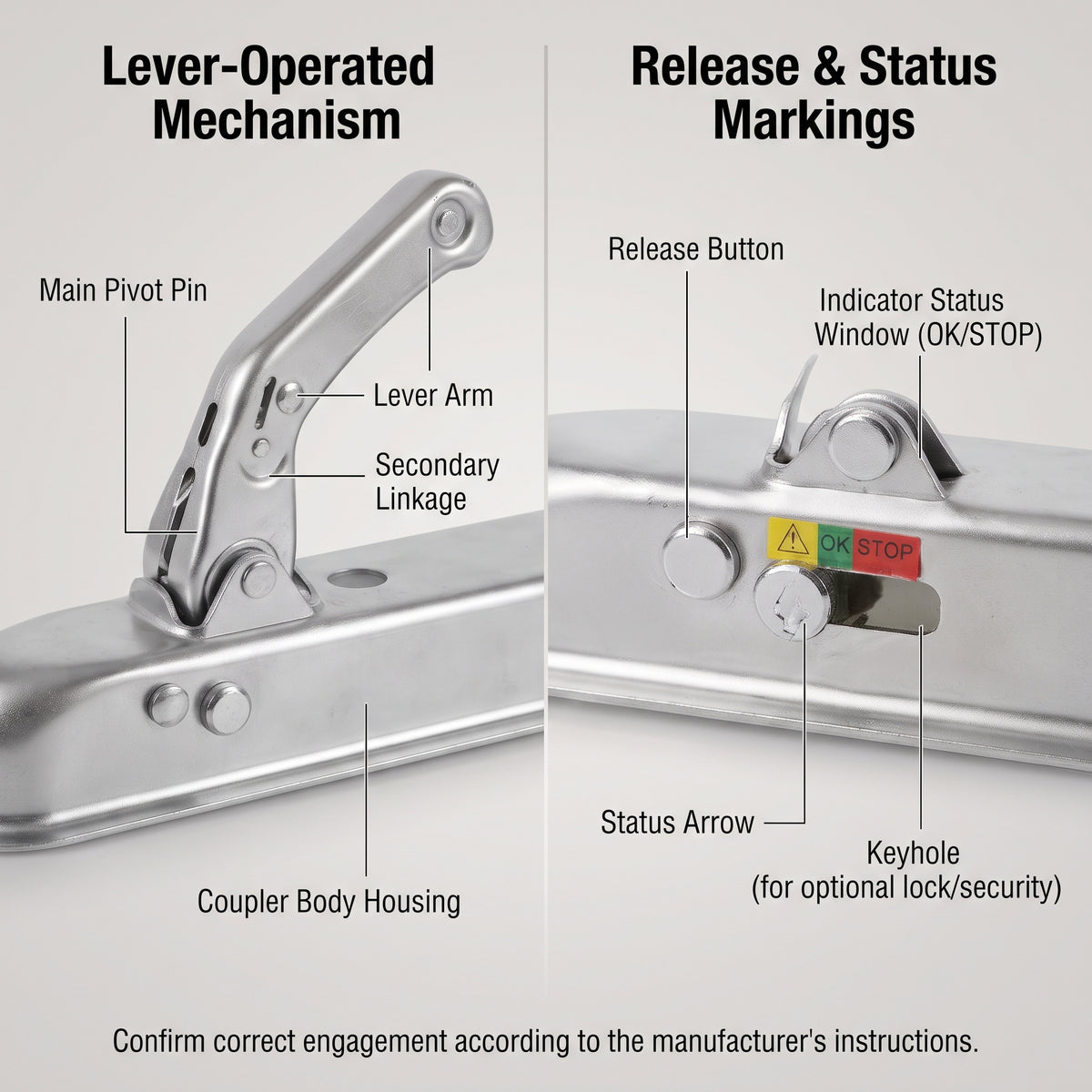

Lever-Operated Coupling and Release
The raised metal handle gives direct access to the coupling mechanism for connecting and releasing the trailer coupler from a compatible tow ball.
A release button and visible colored status markings form part of the exterior design, helping the user identify the operating controls and reference points.
Operate the mechanism according to the manufacturer's instructions and confirm proper engagement before any towing activity.

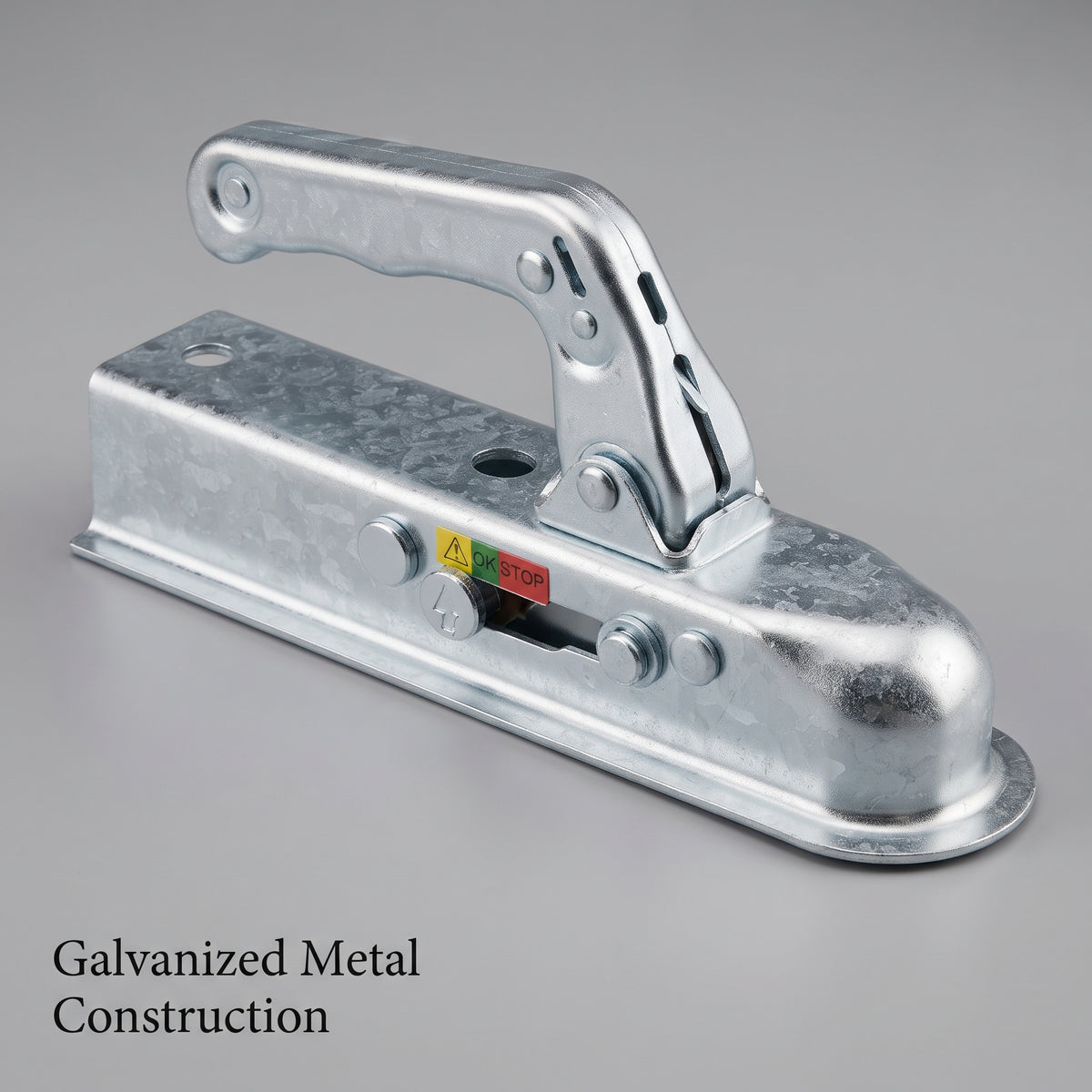

Metal Construction for Practical Trailer Use
The coupler features a silver-finish metal housing with a rounded ball-socket front, raised lever handle, and rectangular rear mounting section.
The product specifies galvanized iron construction with approximately 3 mm metal thickness. Its practical design is intended for use as a trailer connection component, with a supplier-stated maximum load rating of 800 kg.
Actual towing suitability depends on verified component ratings, correct fitment, secure installation, and the limits of the complete towing system.

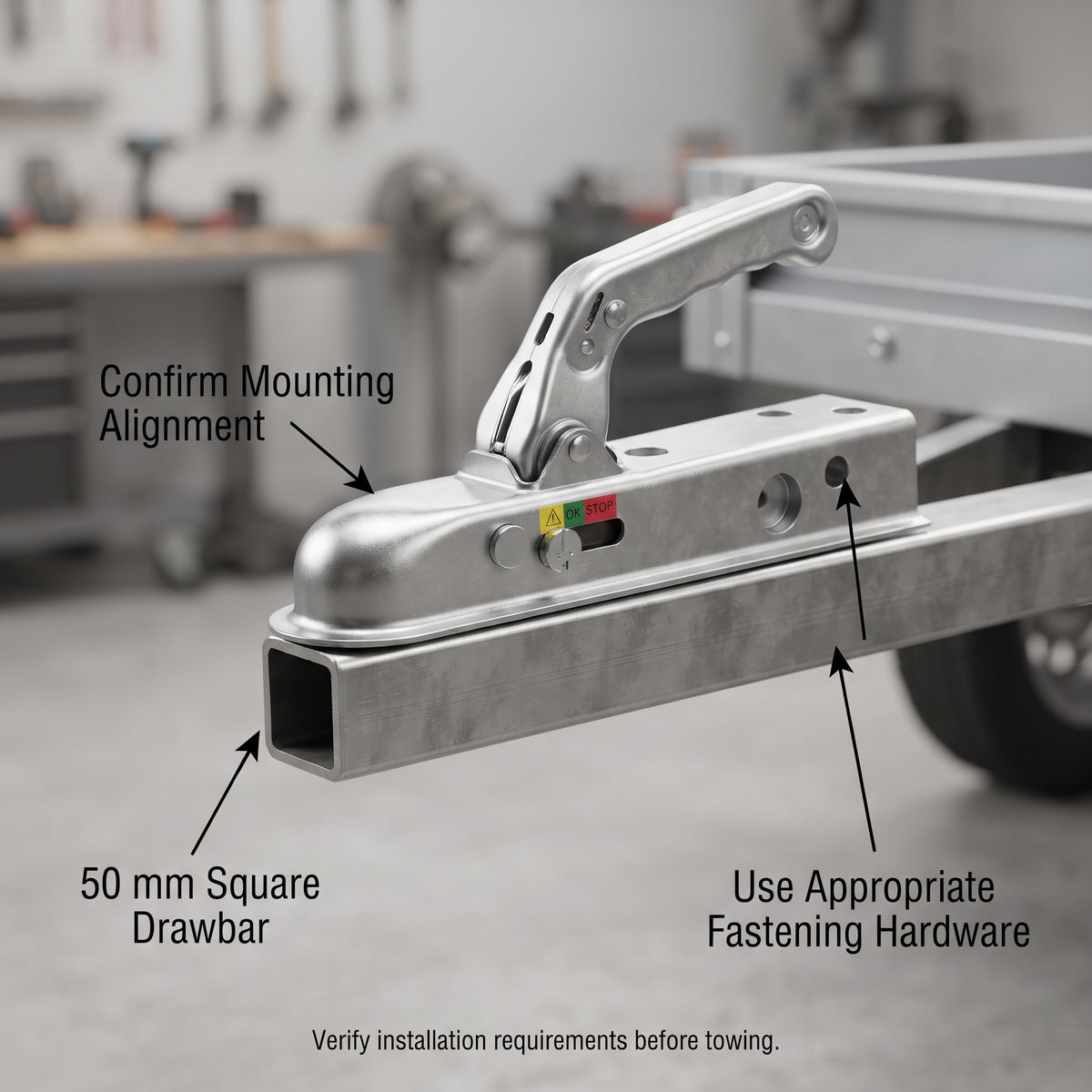

Built for Square Drawbar Installation
The rear housing is designed around a square trailer drawbar connection, with mounting openings visible along the upper section.
The coupler is intended to be mechanically secured to a compatible trailer drawbar using appropriate fastening hardware and a verified mounting arrangement.
Initial installation is different from ordinary lever operation and may require tools, measurement, and mounting hardware. If compatibility or installation requirements are uncertain, consult a qualified trailer technician.
Know What You're Ordering

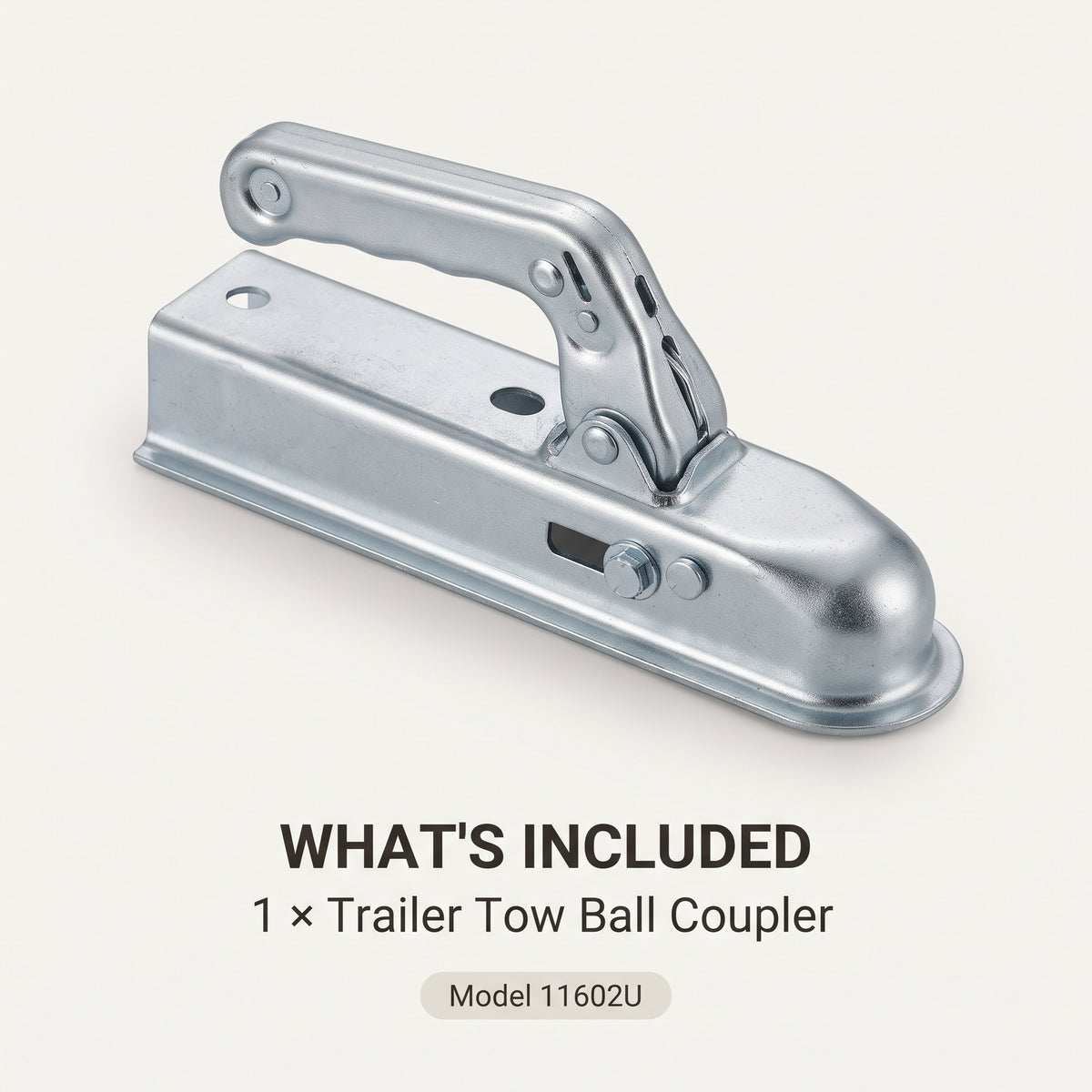

Each order includes one silver trailer tow ball coupler
The product lists approximate dimensions of 27.2 × 8.8 × 12.6 cm and an approximate unit weight of 1.25 kg. The product is intended to couple to a compatible trailer drawbar and tow ball, both of which must be checked separately.
A vehicle-mounted tow ball, complete hitch receiver, and trailer drawbar are not included.
Mounting bolts, a separate security lock, and keys are not confirmed as package contents.
